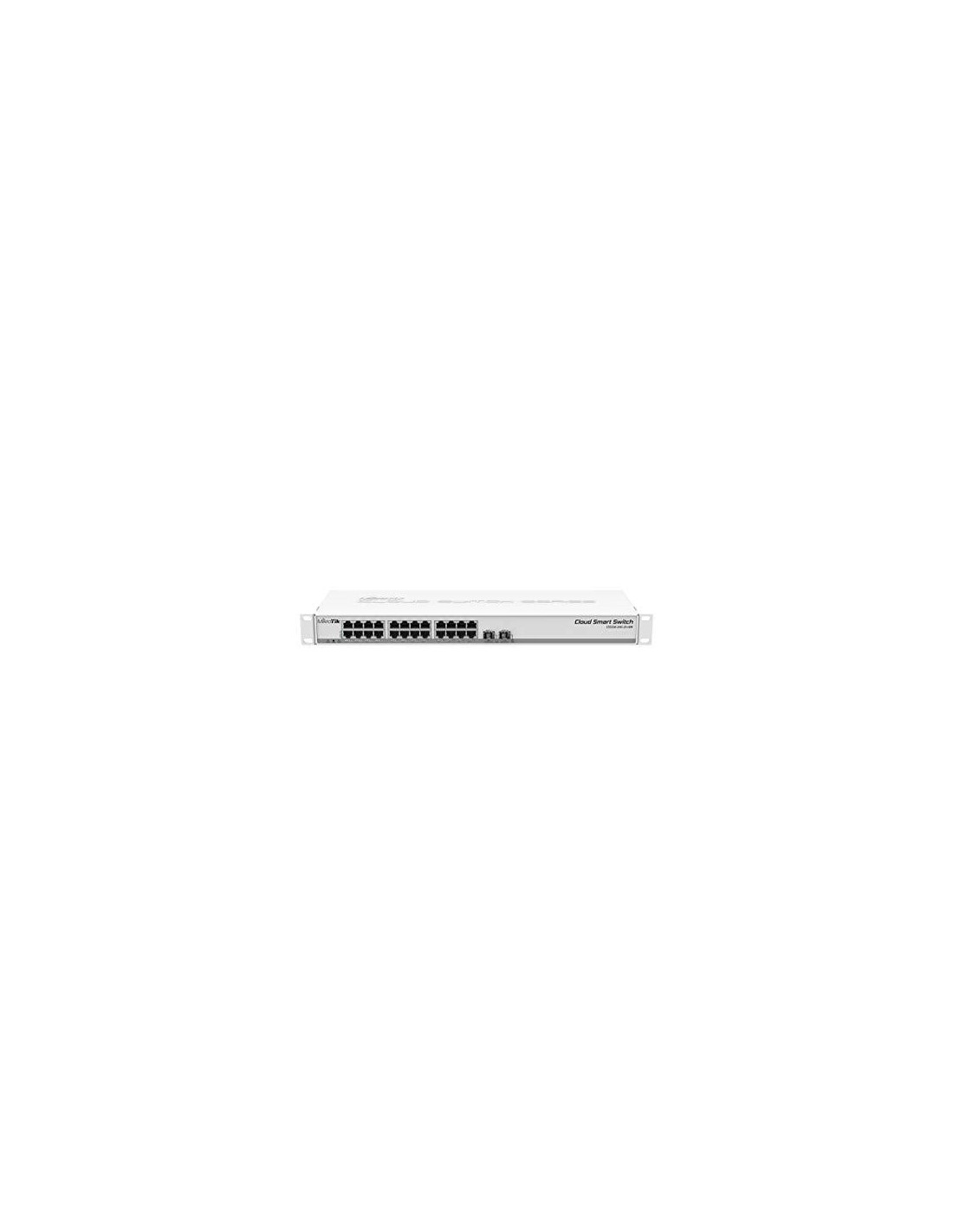

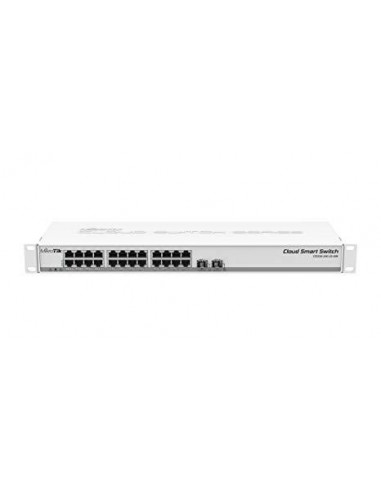

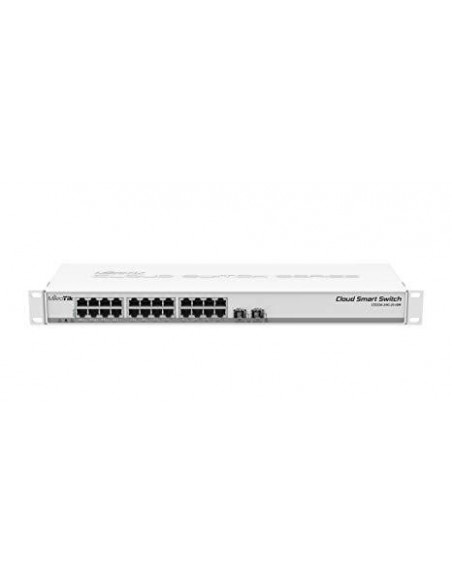

Cloud Smart Switch 326-24G-2S + RM je Gigabitno ethernet stikalo z 24 vrati, ki deluje na sistemu SwOS z dvema SFP + priključkoma v ohišju 1U, ki zagotavlja hitrost žične povezave z več novimi preklopnimi funkcijami.
Omogoča vam vse osnovne funkcije za upravljano stikalo in še več: omogoča upravljanje posredovanja od vrat do vrat, uporabo filtra MAC, konfiguracijo VLAN-ov, zrcaljenje prometa, uporabo omejitve pasovne širine in celo prilagajanje nekaterih polj glave MAC in IP.
SFP priključek podpira 1,25 Gb SFP in 10 Gb SFP + modula.
| Specifications | |
| Details | |
| Product code | CSS326-24G-2S+RM |
| Dimensions | 443 x 144 x 44 mm |
| Operating System | SwOS |
| Storage size | 2 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 70°C |
| Powering | |
| Details | |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-30 V |
| Max power consumption | 19 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
| Ethernet | |
| Details | |
| 10/100/1000 Ethernet ports | 24 |
| Fiber | |
| Details | |
| SFP+ ports | 2 |
| Certification & Approvals | |
| Details | |
| Certification | CE, EAC, ROHS |
