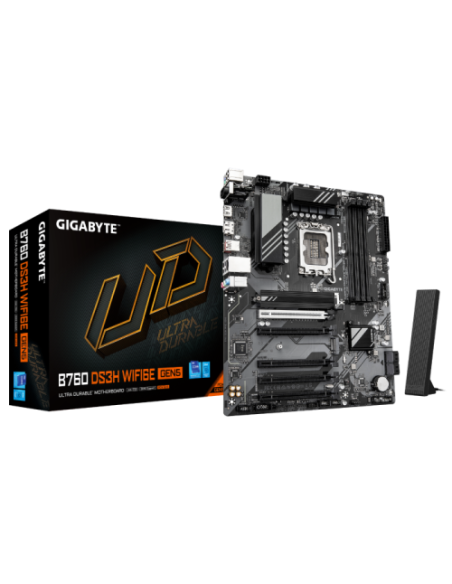

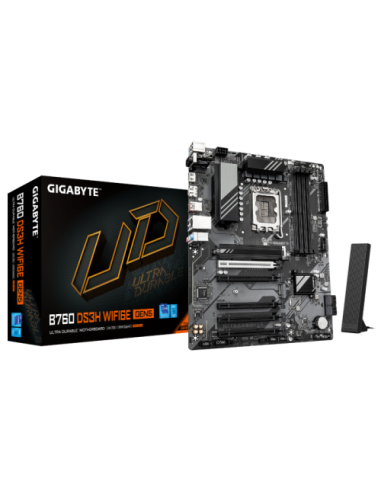

Osnovna plošča Gigabyte B760 DS3H WF6E GEN5

PODNOŽJE: Intel LGA1700
ZA PROCESORJE: Intel Core 12./13./14. generacije
FORMAT: ATX format 30.5 cm × 24.4 cm
VEZNI ČIP: Intel B760
POMNILNIK:
4 x DDR5 DIMM non-ECC, podpora za frekvence do 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400 / 6200 / 6000 / 5800 / 5600 MHz, do skupno 256 GB kapacitete, Dual channel memory architecture, podpora za non-ECC Un-buffered DIMM module, podpora za XMP profile
RAID: DA (0,1,5,10)
RAZŠIRITVENE REŽE:
1 x PCI Express 5.0 x16
4 x PCI Express 3.0 x1
MREŽNA KARTICA: Realtek 2.5 GbE LAN chip
ZVOČNA KARTICA: Realtek Audio codec High Definition Audio (2/4/5.1/7.1-channel)
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumpe
ZUNANJI PRIKLJUČKI:
1 x PS/2 keyboard/mouse port
2 x antenna connectors (2T2R)
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x RJ-45 port
3 x audio jacks
DODATNO:
6+2+1 fazni Hybrid VRM
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
Norton Internet Security (OEM)
LAN bandwidth management software
