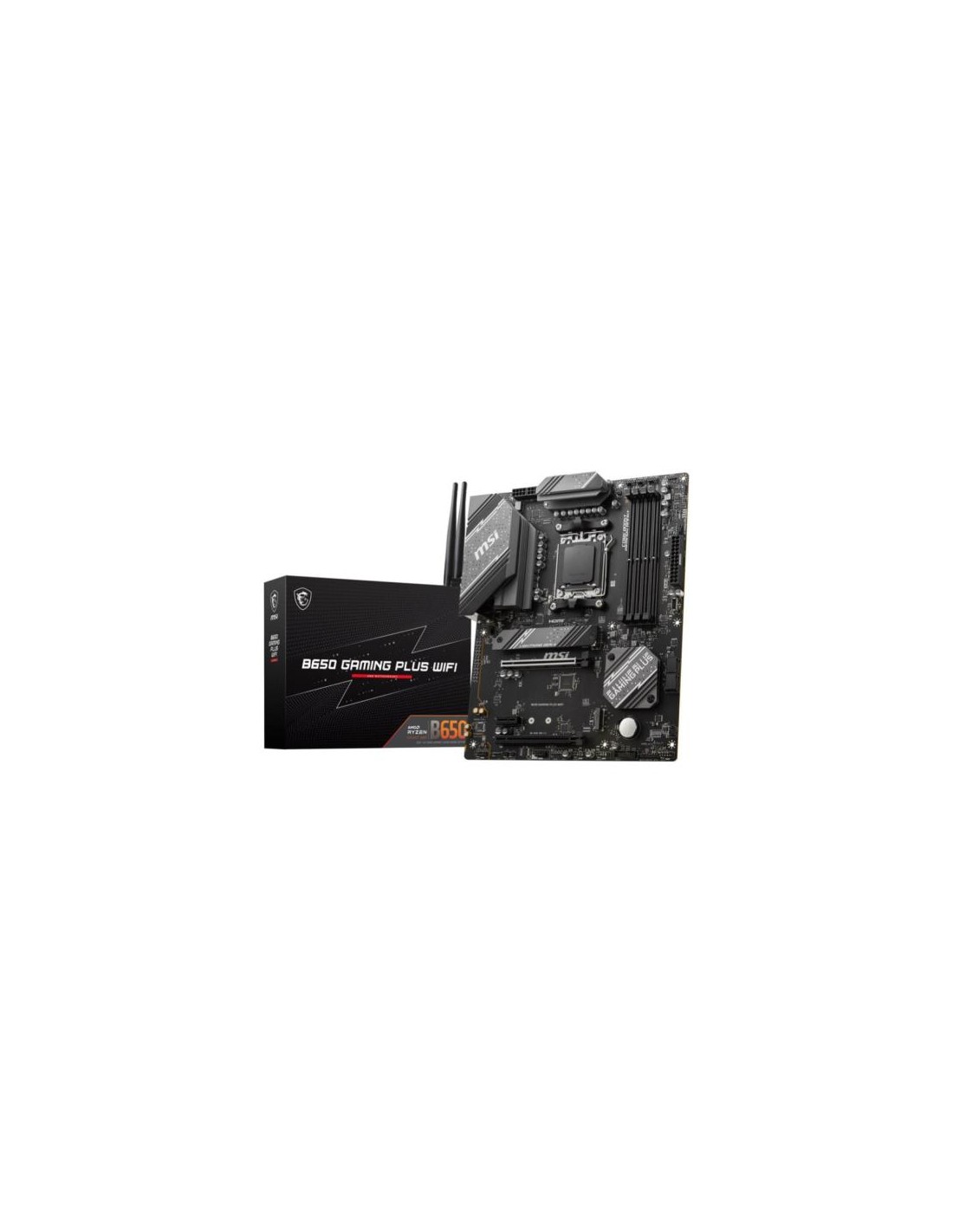

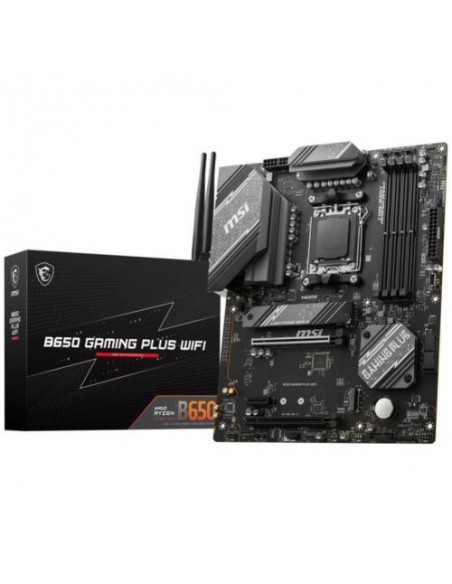

Osnovna plošča MSI MAG B650 GAMING PLUS WIFI (7E26-001R)

Processor manufacturer:
- AMD
Supported processor sockets:
- Socket AM5
Compatible processor series:
- AMD Ryzen 7 7th Gen
- AMD Ryzen 9 7th Gen
Processor socket:
- Socket AM5
Parallel processing technology support:
- Not supported
Motherboard chipset:
- AMD B650
Motherboard form factor:
- ATX
PC health monitoring:
- Fan
Audio chip:
- Realtek ALC897
Motherboard chipset family:
- AMD
Audio output channels:
- 7.1 channels
Windows operating systems supported:
- Windows 11 x64
Supported memory clock speeds:
- 5200
- 5000
- 5600
- 4800
- 6000
- 6200
- 6400
- 5800
- 5400
Maximum internal memory:
- 192 GB
Supported memory clock speed (max):
- 6000 MHz
Number of memory slots:
- 4
Supported memory types:
- DDR5-SDRAM
Width:
- 243.8 mm
Depth:
- 304.8 mm
LAN controller:
- Realtek RTL8125B
Top Wi-Fi standard:
- Wi-Fi 6 (802.11ax)
Wi-Fi standards:
- Wi-Fi 4 (802.11n)
- 802.11a
- Wi-Fi 6 (802.11ax)
- 802.11g
- 802.11b
- Wi-Fi 5 (802.11ac)
Bluetooth:
- Y
Wi-Fi:
- Y
Bluetooth version:
- 5.3
Ethernet LAN:
- Y
Ethernet interface type:
- 2.5 Gigabit Ethernet
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
- 2
ATX Power connector (24-pin):
- Y
CPU fan connector:
- Y
Front panel connector:
- Y
Chassis intrusion connector:
- Y
Front panel audio connector:
- Y
USB 2.0 connectors:
- 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors:
- 1
BIOS type:
- UEFI AMI
RAID levels:
- 0
- 1
- 10
Supported storage drive interfaces:
- M.2, SATA
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
- 3
HDMI version:
- 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 4
HDMI ports quantity:
- 1
Ethernet LAN (RJ-45) ports:
- 1
USB 3.2 Gen 2x2 Type-C ports quantity:
- 1
Headphone outputs:
- 1
Line-in:
- Y
Microphone in:
- Y
Number of M.2 (M) slots:
- 2
PCI Express x16 (Gen 3.x) slots:
- 1
